Especially when being used for low batch counts, the drawing technology of the Leistritz Polymat model range displays its advantages with a great deal of flexibility as regards profile geometry.

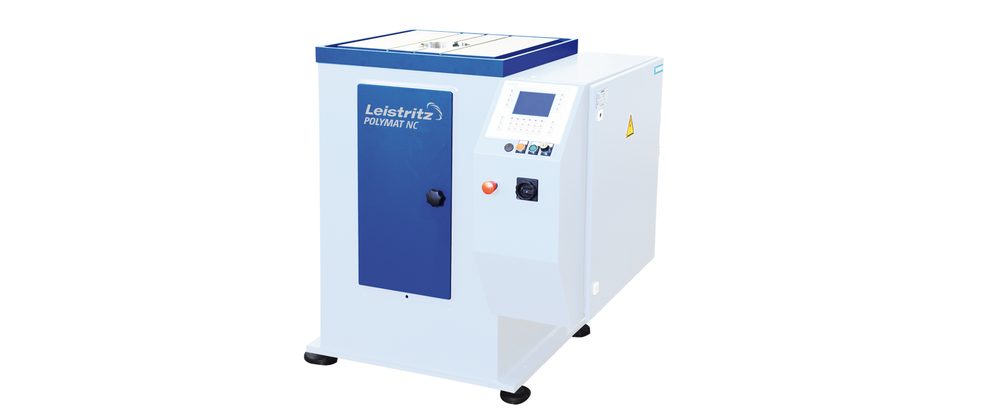

The Leistritz Polymat NC machines are an economical solution for creating clearance grooves/gages in clearance boreholes (single or multiple groove). The Polymat NC is generally designed as a two-axle machine.
Workpiece diameter | 10 - 95 mm |
Groove width | 25 mm |
Drawing length | 300 mm |
Max. tool weight | 10,000 kg |
Base area | 1,100 x 1,300 mm |
Capacity | 3 kW |
Workpiece diameter | 10 - 140 mm |
Groove width | 32 mm |
Drawing length | 400 mm |
Max. tool weight | 10,000 kg |
Base area | 1,100 x 1,300 mm |
Capacity | 4 kW |
